we have our own 2 factories with more than 300 workers ,90% of our production line equipment and tools is imported from Austria to ensure that we provide the nicest quality to our customers.may be we are not the biggest company in china , and also may be we are not the cheapest price in china , but we believe that is the quality and good services is the soul of an enterprise.

Technical Parameters

1.Electrical performance:10a/250v resistance load

2.Operating temperature range:0-270C optional, tolerance of the operating temperature:±(2-13%)C

3Terminal type:250#,insert terminal, bowlegged 0-90 angle,optional;187# insert terminal, bowlegged 0-90 angle,optional,thickness:0.5mm,0.8mm optional

4.Durability: Automatic: UL 100000 times,CQC,TUV 100000 times.Manual:10A/250V,6000cycles

5. Electrical strength: no breakendown and flashorer under AC 1500V for 1 min

6.Contact resistance:≤50mΩ

7. Insulation resistance:>100mΩ

8. Contact type:

automatic normal closed type: the contacts open when the temperature raises, the contacts close when the temperature drop.

Manual normal closed type: the contacts open when the temperature raises,

manual reset. Normal open type: principles of the opposite action.

9. Grounding type: connect the metal shell of the thermostat with the grounded metal parts.

10. Ordinary activities ring, installation, small round activity. Install flat Ring, with the ordinary large aluminum cover, installing hole M4 aluminum/brass cover.

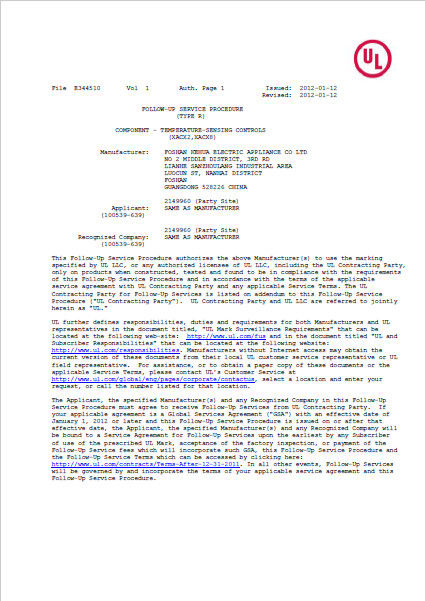

1. Standard:UL
2. Number:E344510

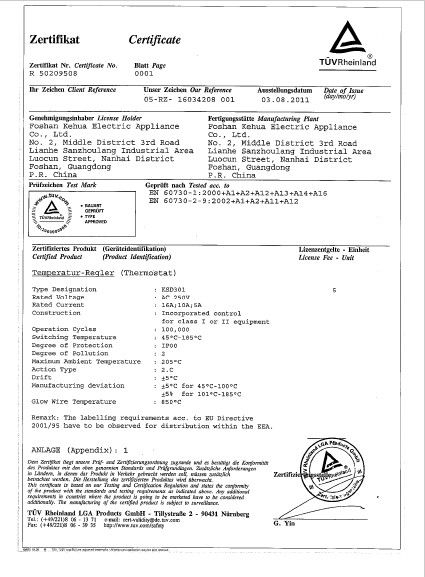

1. Standard:TUV
2. Number:R50209508-0001

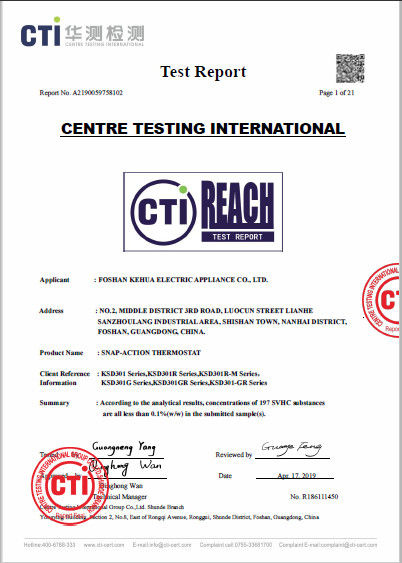

1. Standard:REACH
2. Number:A2190059758102

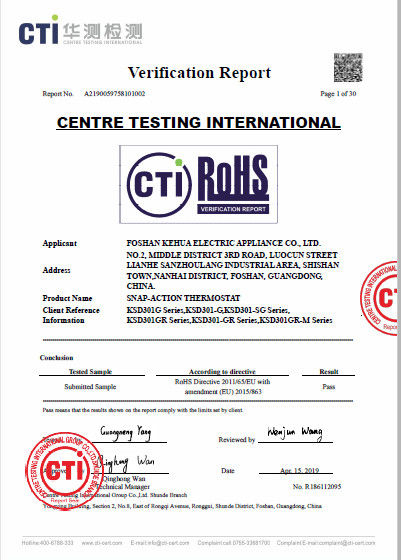

1. Standard:ROHS
2. Number:A2190059758101002

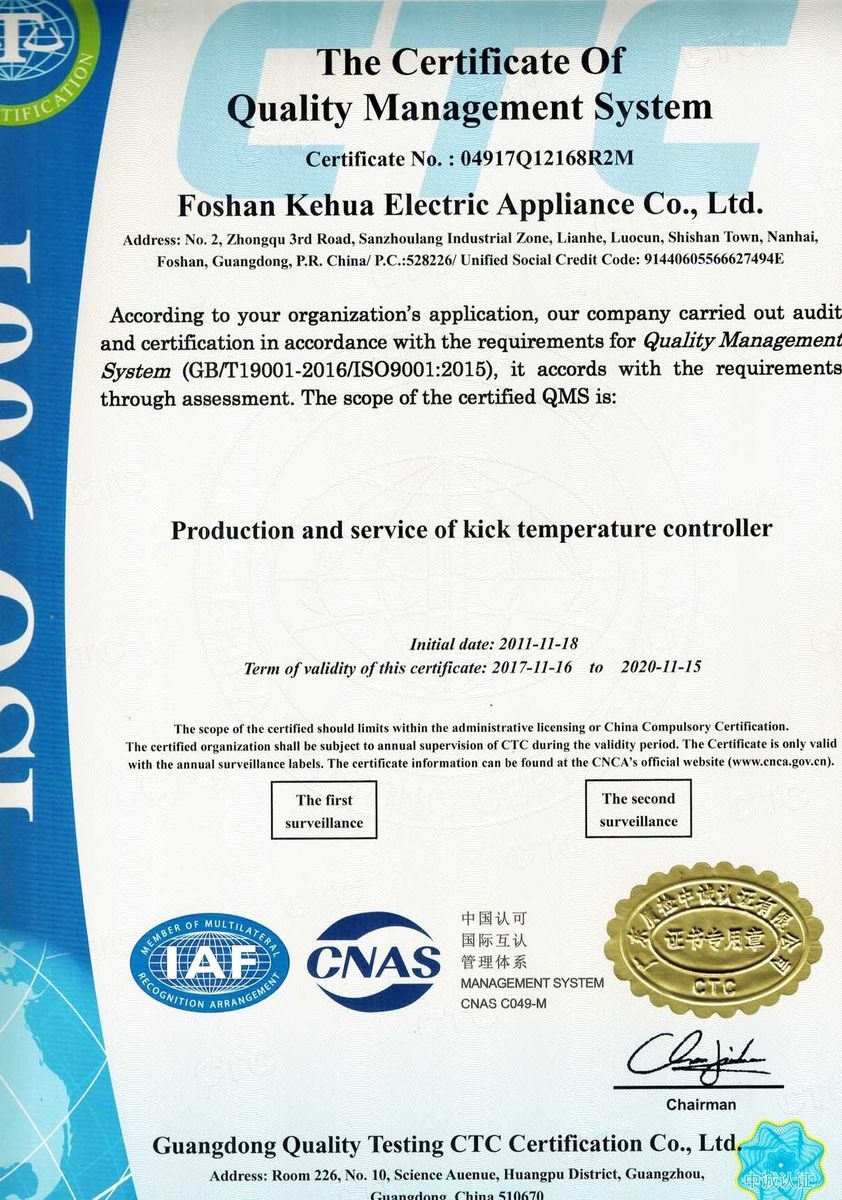

1. Standard:ISO9001:2015
2. Number:04917Q12168R2M
