Installation and Direction for Use:
Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
The terminals should be bent, or else, the reliability of electric connection will be influenced.
| Product Information |

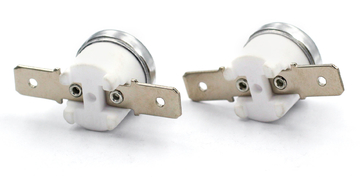

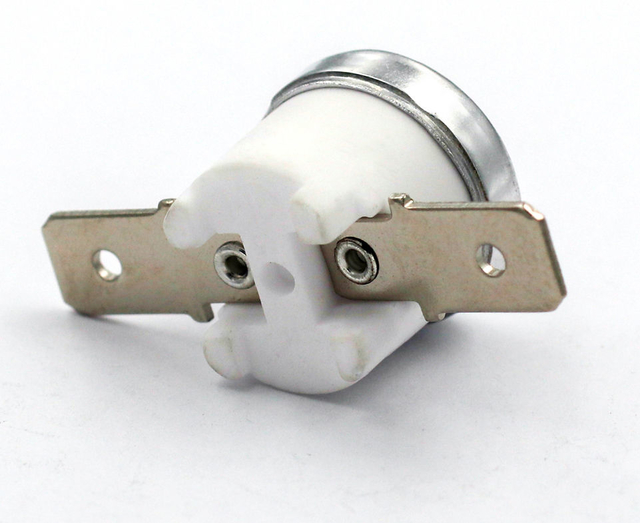

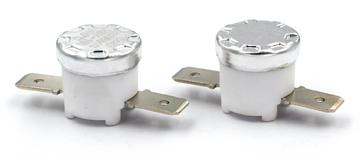

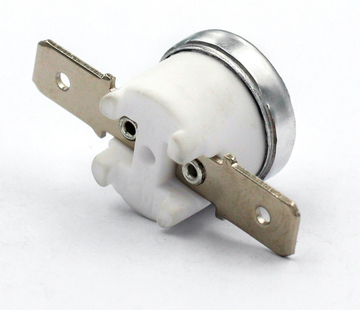

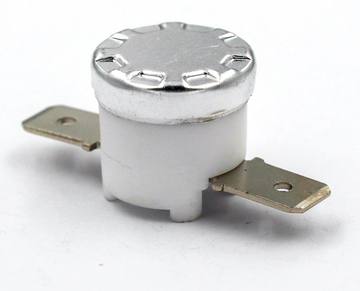

KSD301 series snap-action thermostat is a kind of miniature hermetically sealed bimetal thermal protector (1/2" disc). It is of single-pole single-throw structure and works under resistive load. KSD301 series is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.
Getting more information about high temperature protector and limit switch, please refer to our website:http://www.termostatoswitch.com
| Gold Thermostat Enterprise |
Our company is in strict accordance with the requirements of the quality management system and strictly controls and monitors each link and process of the production.Our products have achieved environmental certification ROHS REACH and EU TUV,UL certification.
Is your parts new and original ? If there is any quality problems or questions , we could offer technical support or return service . |
